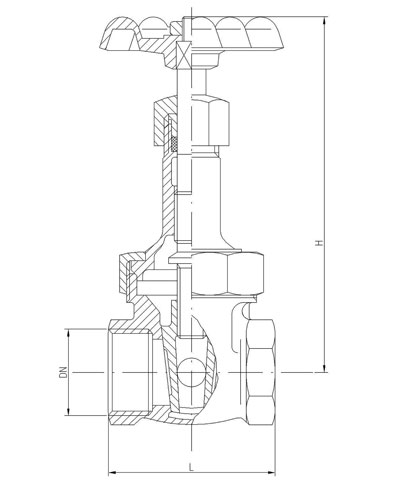

click image to view technical drawing


12108

Disculpa, pero esta entrada está disponible sólo en Inglés Estadounidense y Italiano. For the sake of viewer convenience, the content is shown below in one of the available alternative languages. You may click one of the links to switch the site language to another available language.

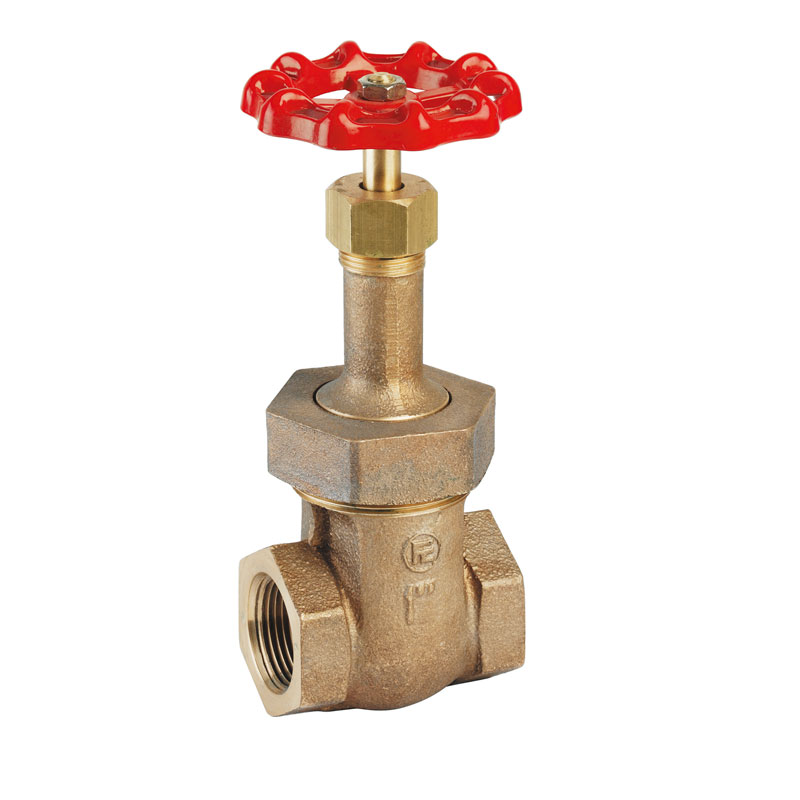

Bronze gate valve PN32 union bonnet fxf, rising stem, solid wedge

PN32/B 200WSP 400WOG
Industria chimica e petrolchimicaCHEMICAL COMPLEXES & PETROLEUM REFINING
Estrazione e raffinazione del petrolioOIL & GAS OFF-SHORE PRODUCTION
Trattattamento delle acque e desalinizzazioneDESALINIATION & WATER TREATMENT
Applicazioni con il vaporeSTEAM APPLICATIONS
Industria navaleSHIP BUILDING INDUSTRY


12111

ALL IN Bz/Al
PN40/A 250WSP 500WOG

12109

ALL IN BRONZE
PN32/A 200WSP 400WOG

12113

TRIM IN MONEL AND RENEWABLE SEAT
PN32/A 200WSP 400WOG

12114

TRIM IN AISI316 AND RENEWABLE SEAT
PN32/A 200WSP 400WOG


Standard Materials
BODY BRONZE-CC491K UNI EN1982
BONNET BRONZE-CC491K UNI EN1982
WEDGE BRONZE-CC491K UNI EN1982
STEM BRASS-CW614N UNI EN12164
SEAT INTEGRAL SEAT
1-4″ 3-8″ 1-2″ 3-4″ 1″ 1″1-4 1″1-2 2″ 2″1-2 3″ 4″
L mm 50 50 55 64 70 75 90 95 110 115 125
H mm 110 110 120 140 155 190 210 230 265 285 380
WEIGHT(Kg) 0,55 0,55 0,8 1,2 1,7 2,35 3,1 4 5,7 7,5 12,2
