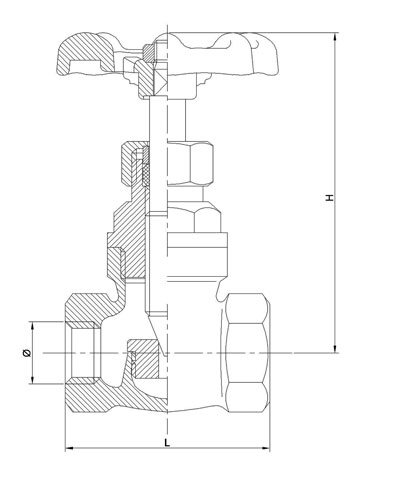

click image to view technical drawing
72456

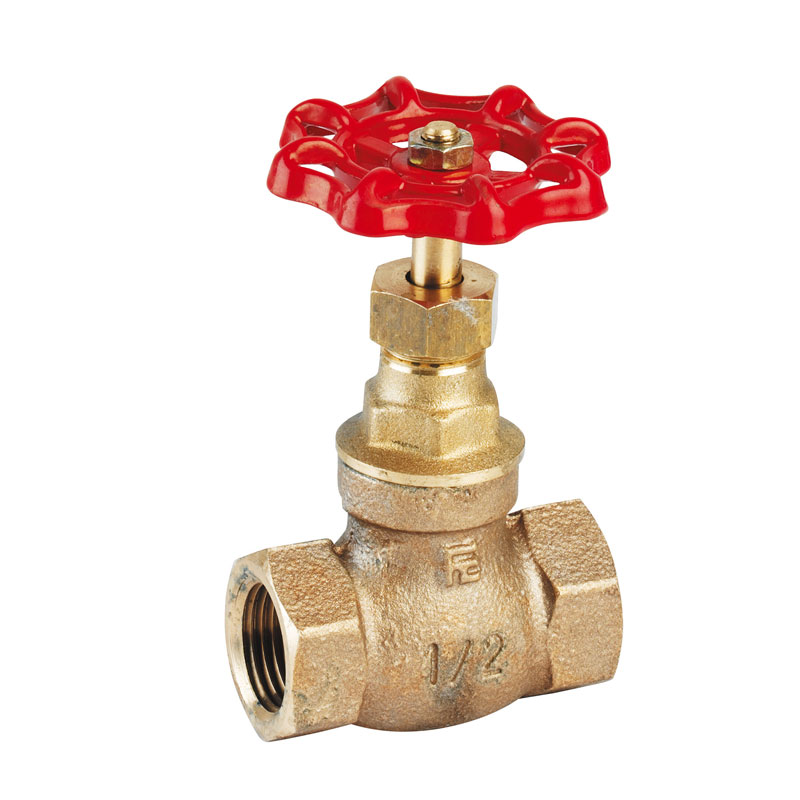

Bronze globe valve PN25 screwed bonnet fxf needle metal disc
PN25/B 150WSP 300WOG
72469 W
AS 1628 MATERIALPN25/B 150WSP 300WOG
Standard Materials
| BODY | BRONZE-CC491K UNI EN1982 |
| BONNET | BRASS-CW617N UNI EN12165 |
| DISC | BRASS-CW614N UNI EN12164 |
| STEM | BRASS-CW614N UNI EN12164 |
| SEAT | BRASS-CW614N UNI EN12164 |
| 1/4″ | 3/8″ | 1/2″ | 3/4″ | |
| L mm | 46 | 46 | 55 | 62 |
| H mm | 80 | 80 | 85 | 115 |
| WEIGHT(Kg) | 0,22 | 0,22 | 0,32 | 0,55 |
