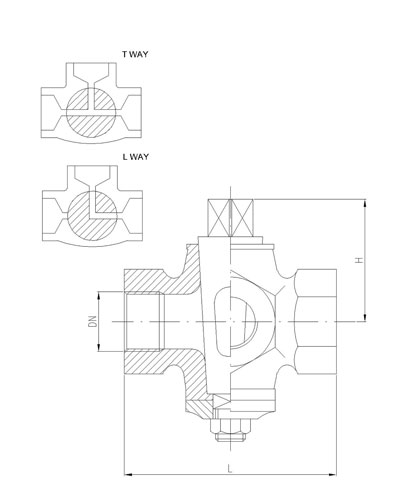

click image to view technical drawing
20905

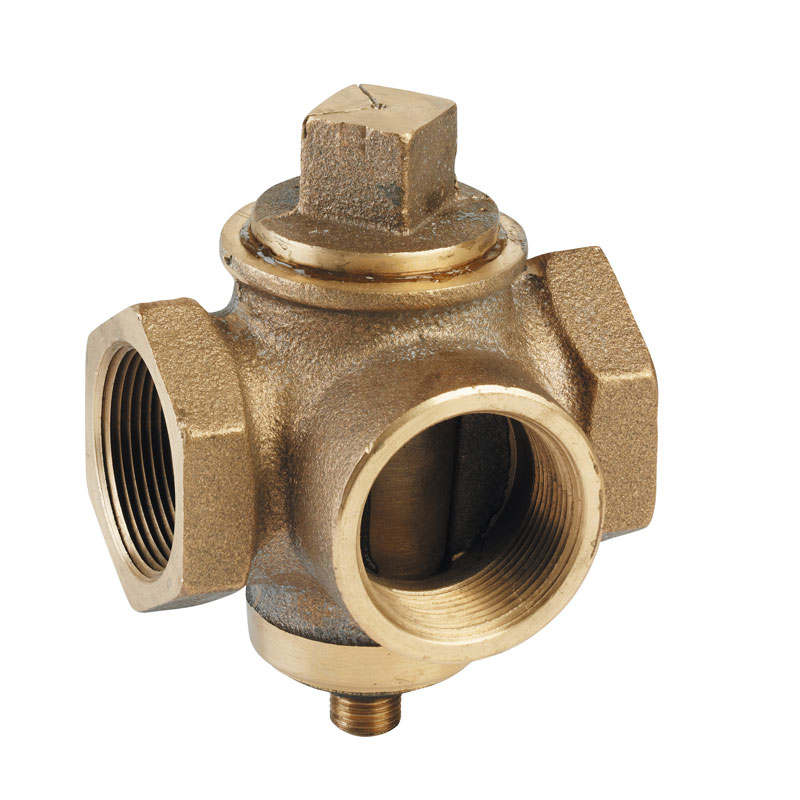

Bronze plug valve 3 way "type t" PN16 screwed ends
PN16/B 100WSP 200WOG
20907
TIPE LPN16/B 100WSP 200WOG
Standard Materials
| BODY | BRONZE-CC491K UNI EN1982 |
| PLUG | BRONZE-CC491K UNI EN1982 |
| 1-4″ | 3-8″ | 1-2″ | 3-4″ | 1″ | 1″1-4 | 1″1-2 | 2″ | 2″1/2 | 3″ | 4″ | |
| L mm | 45 | 48 | 60 | 68 | 73 | 93 | 102 | 118 | 148 | 160 | 180 |
| H mm | 35 | 35 | 38 | 50 | 55 | 65 | 70 | 80 | 100 | 110 | 130 |
| SQUARE on Plug dim. | 11 | 12 | 14 | 17 | 18 | 24 | 25 | 27 | 32 | 41 | 50 |
| Weight (Kg) | 0,2 | 0,22 | 0,32 | 0,6 | 0,8 | 1,45 | 1,95 | 3 | 5,25 | 6,8 | 14 |
